Powertran - PLC

TTEPL JK Fenner

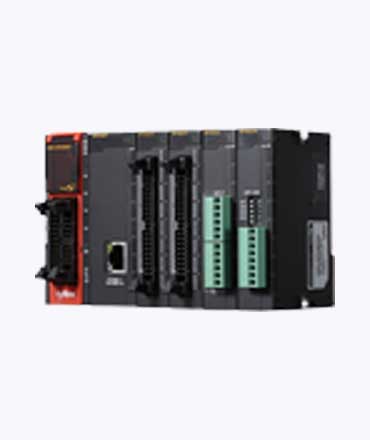

PLC-S: Compact All-Around PLC

Input/Output Points: 16 DI / 16 DO points with a maximum of 11 expansions.
Power Supply: DC 12-24 V input supply.
Built-In Capabilities:
- 32 PID loops
- High-Speed Counter (HSC)
- Positioning
- Serial communication and Ethernet ports
Communication: Remote I/O fieldbus and Powertran-Net communication.

Catalogue

TTEPL JK Fenner PLC-S BLOCK

PLC-S BLOCK

Input/Output Points: 8 DI / 8 DO (TR).
Built-In Capabilities:
- 32 PID loops
- High-Speed Counter (HSC)
- Positioning
- Serial communication port
Memory:
- 10K step program memory
- Built-in Flash memory

Catalogue

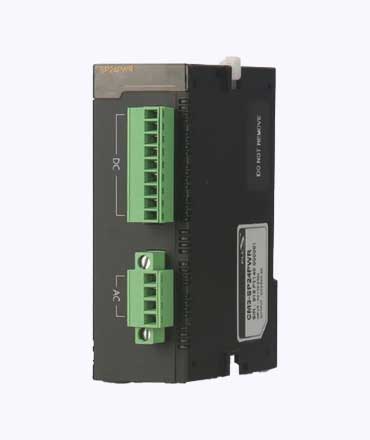

TTEPL JK Fenner Power Module description

Power Module Description

Power Input:
- AC 88 ~ 264V
- DC 19 ~ 28V (CM1-SP2B)
- DC 70 ~ 130V (CM1-SPW)
Power Output:
- DC +5V
- DC +24V
- DC +15V
- DC -24V
System Protection:
- Detects temporary power outages
- Prevents system malfunction and data corruption

Catalogue

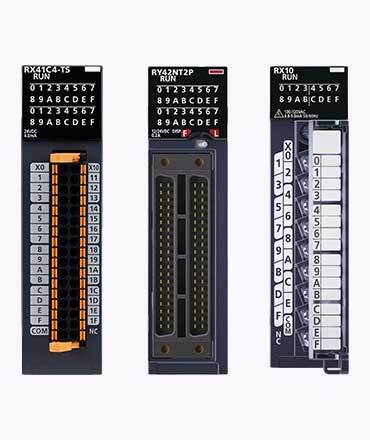

TTEPL JK Fenner Digital I/O Module description

Digital I/O Module description

I/O Type: TR (sink/source) & Relay
Input Voltage: 24V DC
Output Voltage:
- 12V/24V DC
- 220V AC (Relay)
Output Current:
- TR: 0.2A per point, 2A COM
- Relay: 2A per point, 5A COM
Insulation Method: Photocoupler or relay insulation

Catalogue

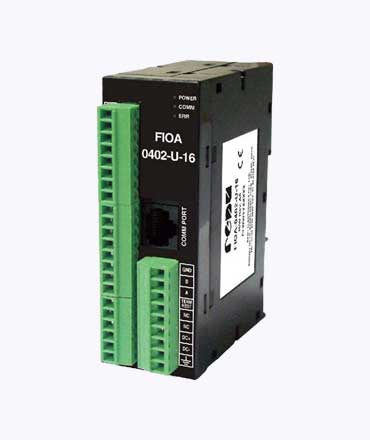

TTEPL JK Fenner Analog I/O Module description

Analog I/O Module description

A/D Module:
- 4 channels (CH) voltage/current input
D/A Module:
- 4 channels (CH) voltage output: -10~~10V, 0~~10V
- 4 channels (CH) current output: 4~20mA
A/D D/A Module:
- 2 channels (CH) voltage/current input
- 2 channels (CH) voltage/current output
Insulation: Photocoupler insulation protects operations from interference

Catalogue

TTEPL JK Fenner Analog MUX description

Analog MUX Description

Channel Management: Receives 4 channel analog signals and switches them sequentially to an output port by a set time interval.
Channel Control: Channels can be enabled or disabled, and channel information can be easily checked.
Capacity: 16 points (16pts)
Mode Selection: Auto/Manual mode selectable
Error Indication: LED blinks at 0.5-second intervals in error condition

Catalogue
